120 m3 / h Mobile ready Mixed Concrete Plant

*All of our products are made with care and covered for 1 year warranty!
*Installation and Operator Training FREE

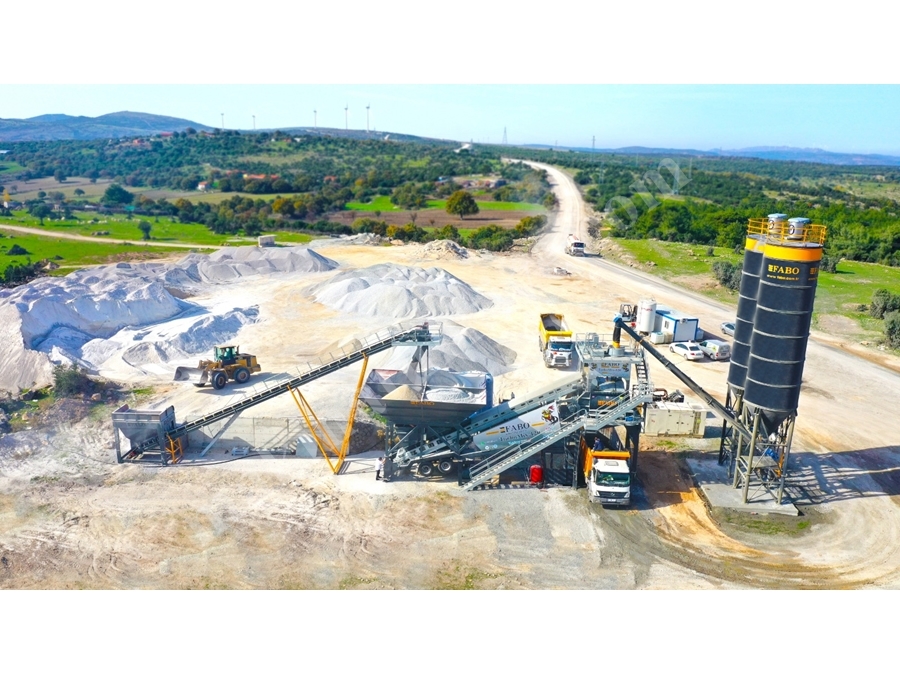

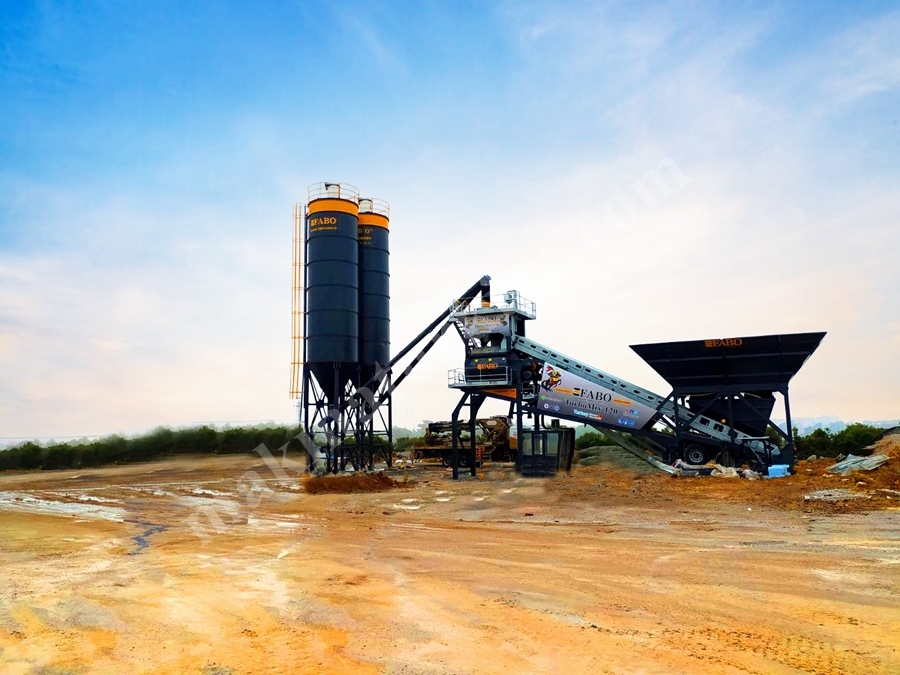

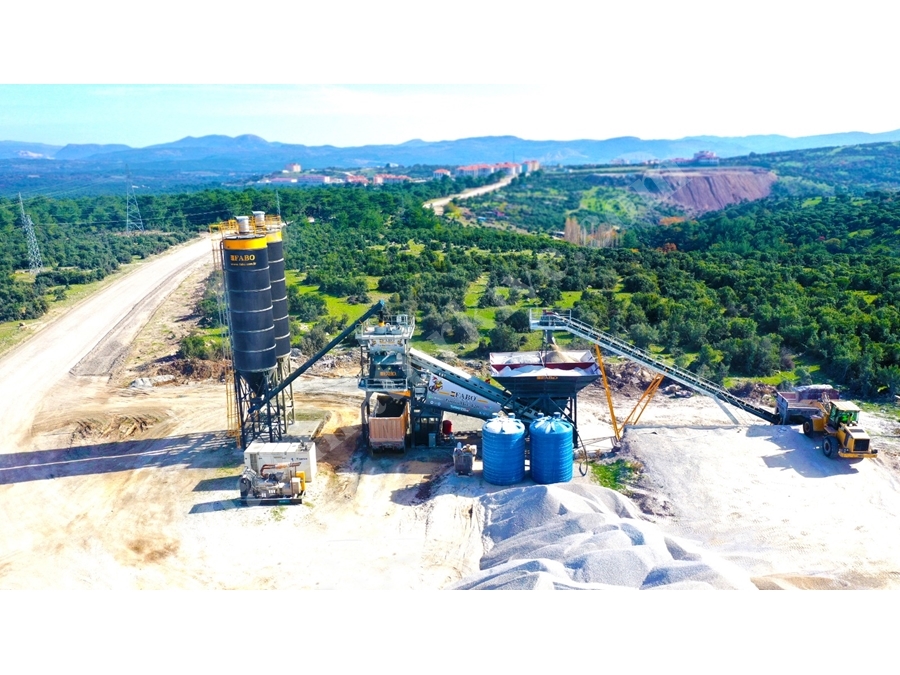

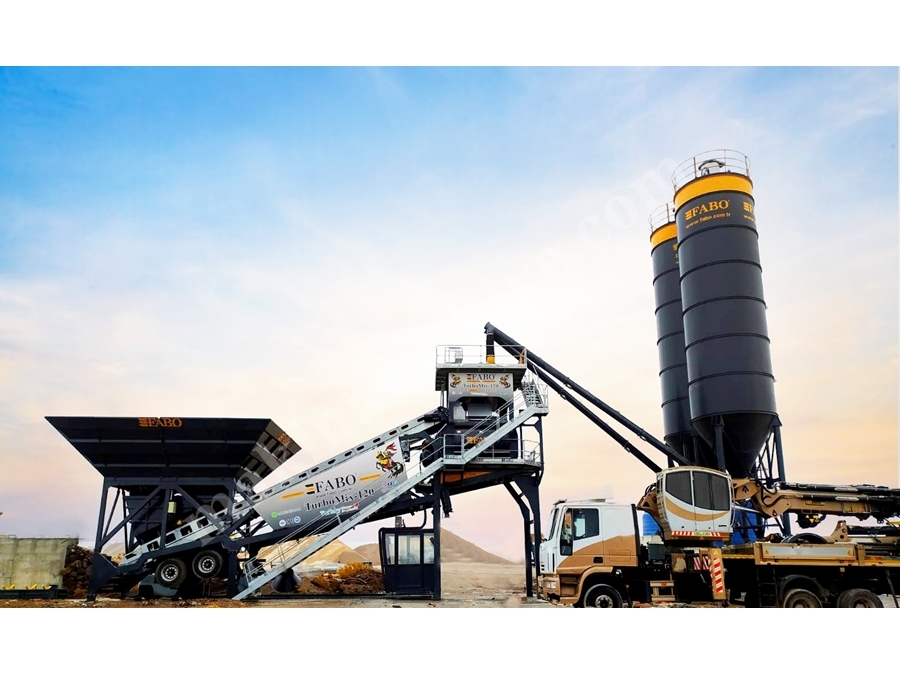

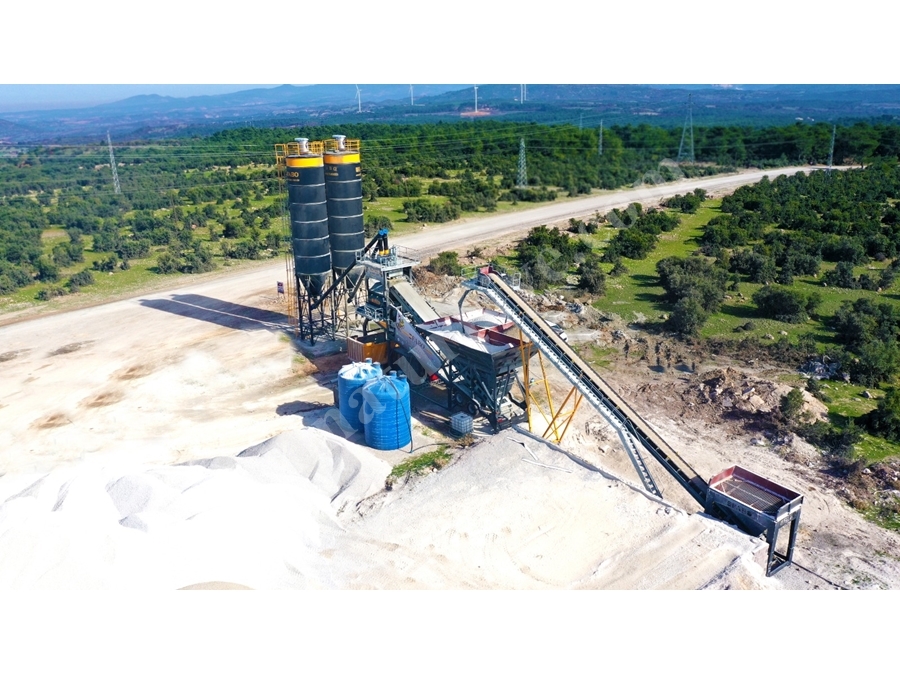

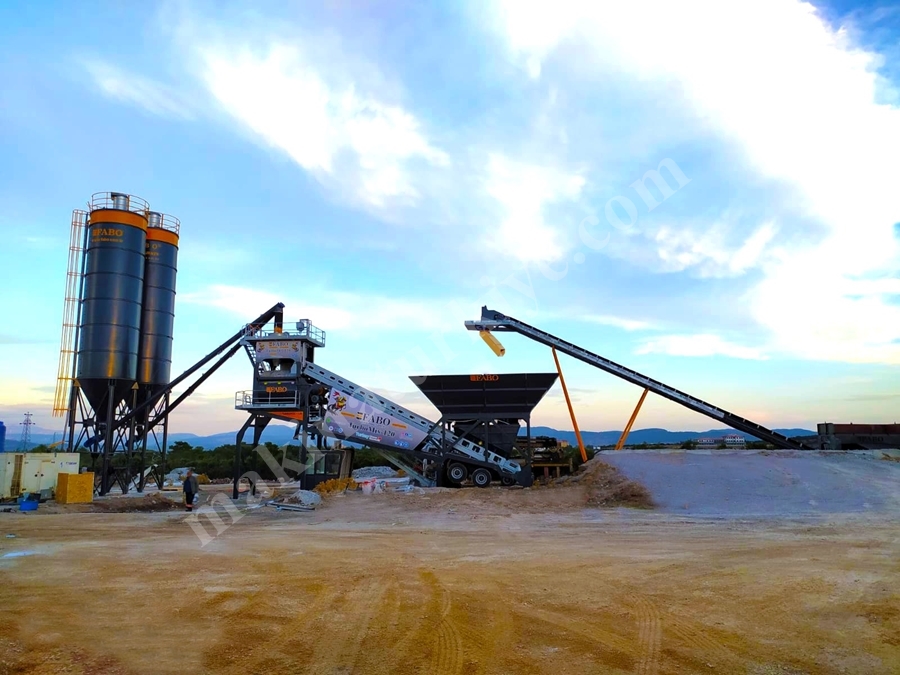

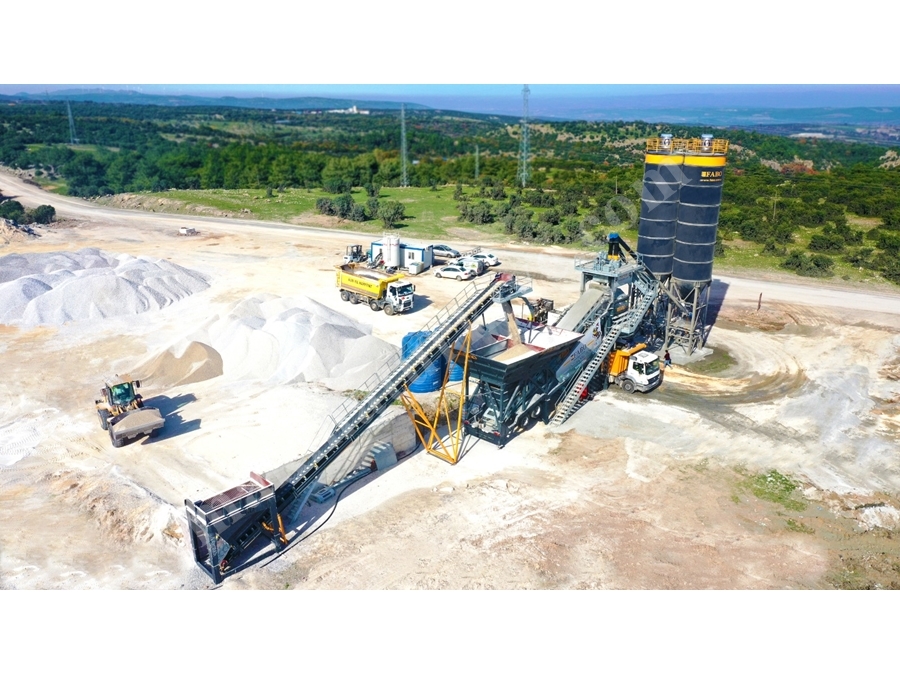

FABO TURBOMIX Full Automatic Mobile Concrete Batching Plants are ideal solutions for the projects that require short term and a compacted settlement on a dedicated job site. Since all the equipment of a concrete plant is assembled on a single mobile chassis, the plant can be moved easily by only one truck head. Productivity of TURBOMIX mobile concrete plants vary from 30 m3/h to 150 m3/h.

FABO TURBOMIX series of mobile concrete batching plants have automatic control, static/dynamic Load Cell Weighing of aggregate materials and additives. Concrete plants have qualitative and strong concrete mixer, which provides high capacity homogeneous mixture.

TECHNICAL SPECIFICATIONS:

Model: TURBOMIX 120

Production capacity: 120 m³

Dimensions (length x width x height): 17500 x 3200 x 4600 mm

Mixer type: Twinshaft – 3 m³

Aggragate bunker: 4 x 20 m³

Transfer conveyor: 6600 kg

Cement weighing: 1600 kg

Additives weighing: 50 kg

Water weighing: 900 lt

Total weight: 31460 kg

Total motor power: 145 kW

Cement silo is optional.

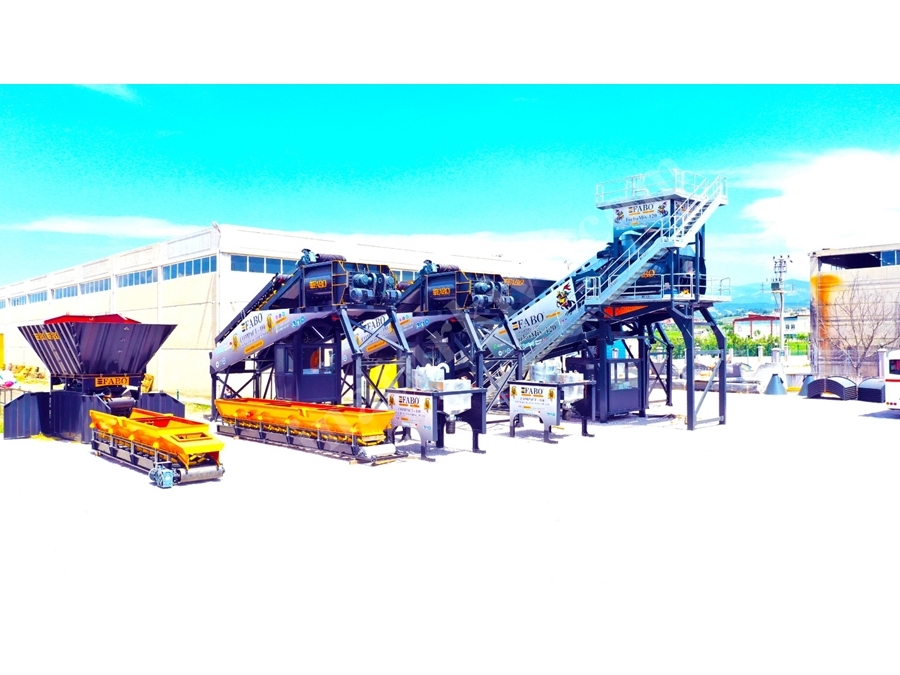

Turbomix 120 consist of:

• Aggregate Storage Hopper
• Aggregate Weighing Hopper
• Aggregate Transfer Conveyor
• Twinshaft Mixer
• Mixer Chassis, Walking Platforms, Ladder
• Water Weighing Hopper
• Cement Weighing Hopper
• Admixture Weighing Hopper
• Air Compressor
• Cement Screw Conveyor
• Bolted Cement Silo
• Top Filter, Safety Valve and Accessories
• Control Cabinnet
• PC and Automation System
• Control and Power Panel
